CH 3
SPECIFICATIONS

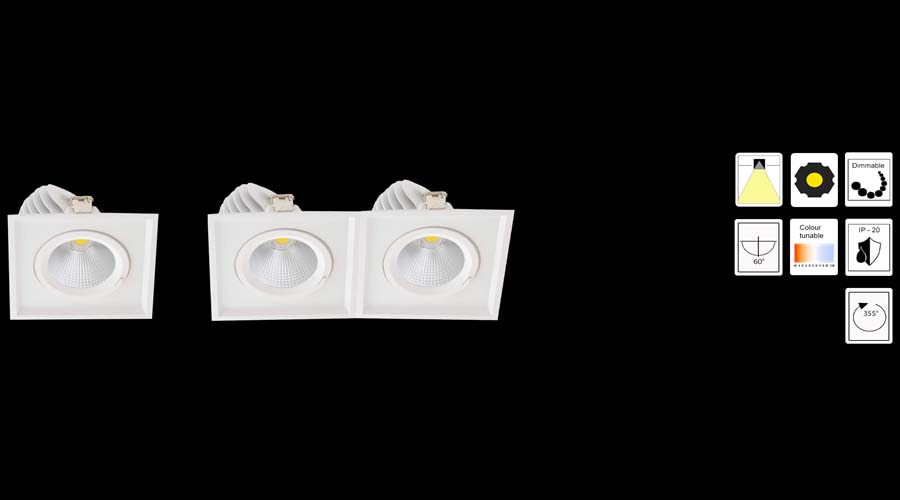

Architectural, COB LED recessed downlights, mounted on cast aluminium frame in 1X, 2X, 3X and 4X modular configuration for accent lighting application. Option to have different light beam angles with easily interchangeable anodized aluminium reflectors to suit specific application demand. Luminaire Light beam direction adjustable through 355° in horizontal plane and 60° in vertical plane. Optical compartment is protected with clear poly carbonate film having very high transmissivity. Luminaire available in 15/20/24/30/36W ratings with >120 lm/W. High efficiency fixed output or anlog / DALI dimming driver fitted on a separate gear tray for remote installation. Luminaires available with fixed color tempearture or with tuneable white options and CRI of 80 or 90.
Options
Emergency conversion kit for 1-hour operation (EM).
DOWNLOADS
Technical Information / Request Catalogues
