VHB
Assembly halls in factories, Warehouses, Workshops, Logistics distribution centres and Other similar applications.
SPECIFICATIONS

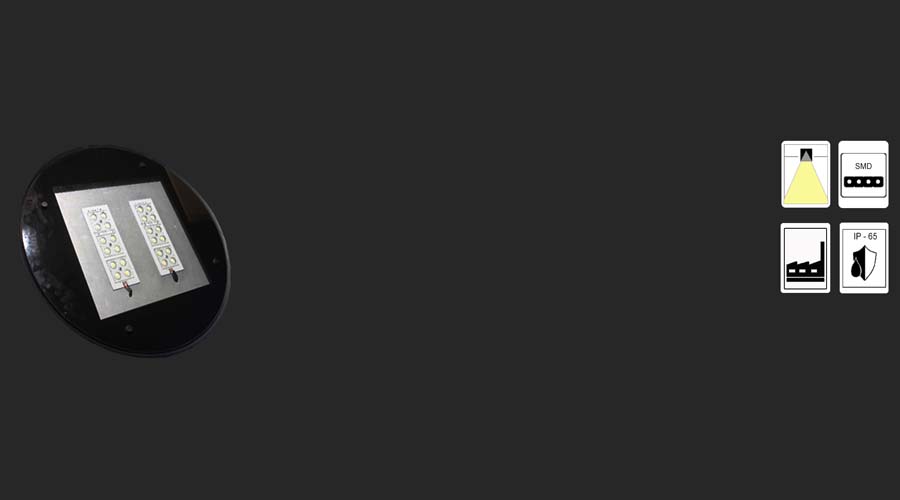

Highbay LED luminaire for industrial application. Best in class SMD LED’s mounted on electro-mechanically stable board ensuring long operational life. Poly carbonate optical lens for precise light beam control, with options of 60° or 120° beam angles. Luminaire housing made of powder coated spun aluminium with impact resistant clear glass bottom cover. The glass cover is fixed to the housing with silicone rubber gasket and stainless steel screws to conform ingress protection of IP65. Integrated higher efficiency electronic driver. Options with Fixed output and analog / DALI dimmable drivers. Luminaire available in 2 different sizes with sytem wattages of 60, 75,90, 100, 120, 150 and 200 W and efficacy of >135 lm/W. Luminaire provided with eye bolt for ceiling suspended installations.
Options
Emergency conversion kit with battery back-up for 90 minute operation.
