RHB1
Assembly halls in Factories, Warehouses, Workshops, Logistics Distribution Centres, aircraft hangers and other similar applications.
SPECIFICATIONS

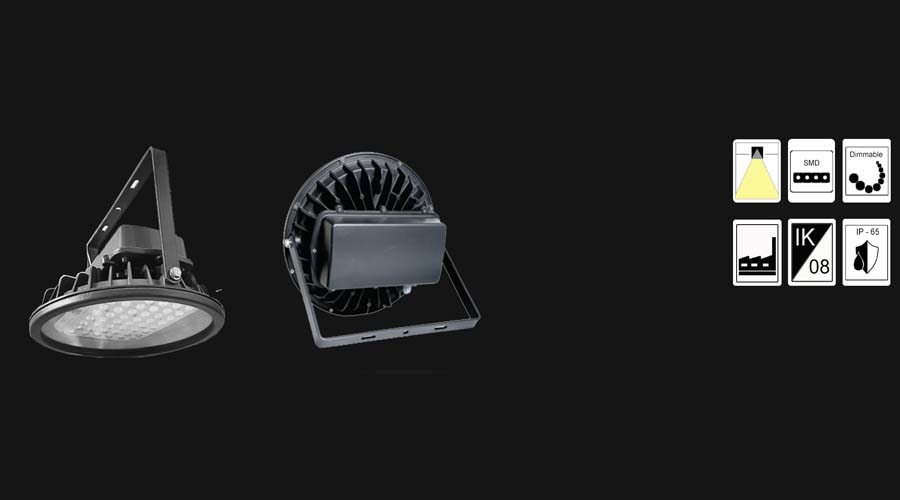

Highbay LED luminaire for industrial application. Best in class SMD LED's mounted on electro-mechanically stable board ensuring long operational life. Poly carbonate optical lens for precise light beam control, with options of 30° or 60° or 120° beam angles. Luminaire housing made of die-cast aluminium powder coated finish with impact resistant clear glass bottom cover. The glass cover is fixed to a cast aluminium frame and attached to the housing with silicone rubber gasket and stainless steel screws to conform ingress protection of IP 66. Integrated higher efficiency electronic driver mounted in isolated driver compartment with connectors. Luminaire provided with external 10 kV surge protection, in addition to the 4 kV protection built-in in the driver. Options with Fixed output and analog / DALI dimmable drivers. Luminaire available in 2 different sizes with sytem wattages of 60, 90, 150 and 200W and efficacy of >135 lm/W. Luminaire provided with powder coated steel bracket for ceiling mounted or suspended installations.
Options
Tuneable White option. Self-contained emergency conversion kit for 1-hour or 3-hour emergency operation (EM).
