LHB1
Factories, Warehouses, Workshops, Sub-station panel rooms, Logistics distribution centres, Aircraft hangers and Other similar applications.
SPECIFICATIONS

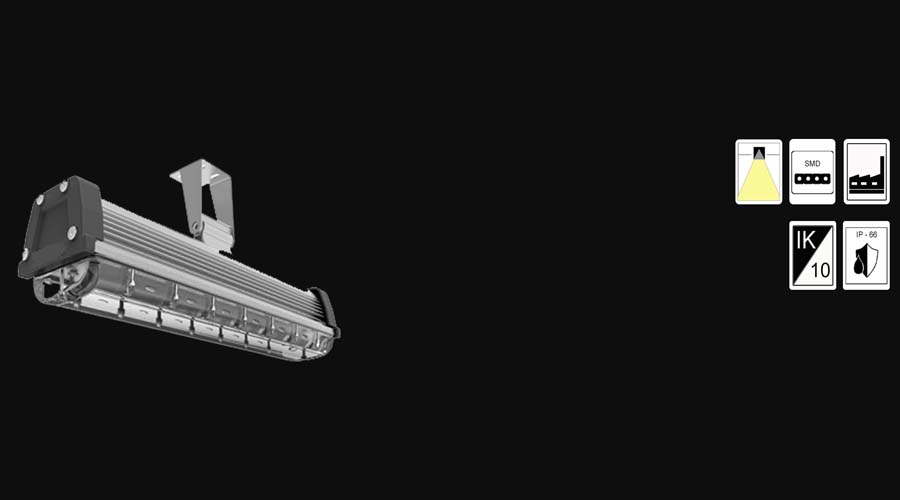

Linear LED highbay luminaire in modular construction for industrial application. Best in class SMD LED’s mounted on electro-mechanically stable board ensuring long operational life. Poly carbonate optical lens for precise light beam control, with options of 30° or 60° or 120° beam angles. Luminaire housing made of extruded aluminium powder coated finish with impact resistant, moulded Poly carbonate bottom cover. Bottom cover attached to housing with silicone rubber gasket and stainless steel screws conforming ingress protection of IP66. Integrated higher efficiency electronic driver mounted in isolated driver compartment with connectors. Luminaire provided with external 10 kV surge protection, in addition to the 4 kV protection built-in in the driver. Options with Fixed output and analog / DALI dimmable drivers. Luminaire can be ceiling mounted or suspended using specially designed mounting brackets.
Options
Light Distribution with 60° or 90° beam angle; Emergency Conversion kit for 1-hour or 3-hour emergency operation (EM).
DOWNLOADS
Technical Information / Request Catalogues
LHB1
