HOMCLEAN

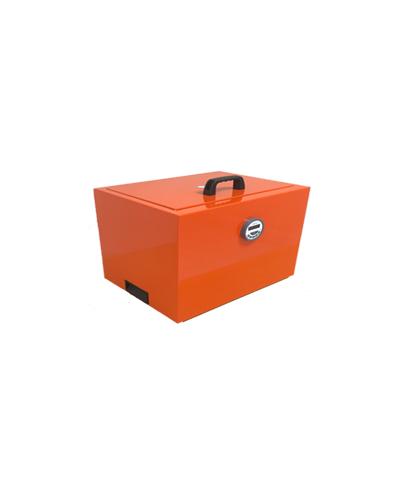

ULTRAVIOLET (UV-C) BOX FOR DISINFECTION
Make and Origin
RAYMOLD, India
Brand
RAY-CLEAN
Product Information
Germicidal cabinet for surface disinfection and deactivation of virus, bacteria, spores and other microorganisms; Jointly developed and tested by Raymold and CSIR-CSIO*
Main Application
Surface Disinfection of grocery, fruits and vegetables, personal items like cell phone, lap-top, wallet and other small items in residences, offices, health care centres, shops and other facilities
BUY NOW Download Catalogues
Technology
Ultraviolet low-pressure discharge Germicidal lamps (UV-C 253.7nm) with low mercury content and high efficiency UV reflectors
UV Power (W)
5 to 16
Disinfection Efficiency
Up to 99.99% (based on load and duration of exposure)
Irradiation time
3 to 8 minutes based on loading; duration set with electronic timer
Body/Housing
MS Powder coated
Storage
Removable basket, mesh type
Dimensions- Overall (mm)
HOMCLEAN10 - L:400, D:300, H:150; HOMCLEAN25 - L:400, D:300, H:300
HOMCLEAN35 - L:450, D:450, H:300; HOMCLEAN60 - L:500, D:500, H:300
Net Weight (kg)
7.0 / 10.5 / 14.0 / 18
Rated input voltage (V)
230V, 50Hz, 1Ø
Operating Voltage range
180V - 260V
Type of Gear
Electronic
System Wattage (W)
22/48/48/70
Standby Wattage (W)
0.5
Timer
Electronic
Electrical safety
Class 1
Power supply Chord
3 core cable, 1.5m long, fitted with 3-pin, 5A power plug
Protection
Mains switch with replaceable fuse unit
User Protection
Auto cut-off during open door condition to avoid direct exposure of human to Ultraviolet rays
Data Subject to change without prior notice
