Convenio
General retail spaces, Garment and Jewellery stores, Shop windows, Meeting and Conference rooms, Reception area, Corridor and Other similar applications.
SPECIFICATIONS

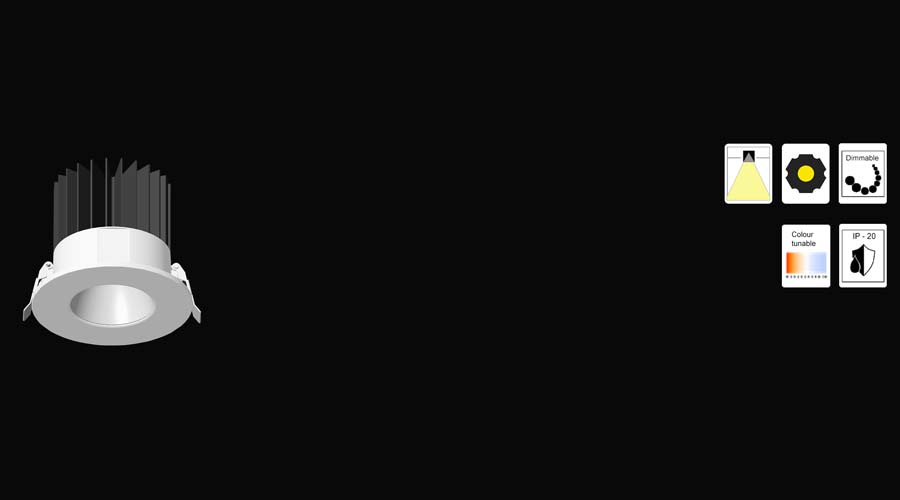

Architectural, COB LED recessed downlights with die-cast aluminium housing and extruded aluminium passive heat sink. Available in 130 mm and 150 mm diameter. Option to have different light beam angles with easily interchangeable anodized aluminium reflectors to suit specific application demand. Optical compartment is protected with clear poly carbonate film having very high transmissivity. Luminaire available in 15/20/24/30/36/44 W ratings with >120 lm/W. High efficiency fixed output or analog / DALI dimming driver fitted on a separate gear tray for remote installation. Luminaires available with fixed colour temperature or with tuneable white options and CRI of 80 or 90.
Options
Emergency conversion kit for 1-hour operation (EM).
Special Feature
Independent, cast aluminium mounting ring for easy installation and dismantling of luminaire with 'twist-lock' mechanism avoiding potential damage to false ceiling finish.
DOWNLOADS
Technical Information / Request Catalogues
