CH 2
General Retail Spaces, Grament and Jewellary stores, Shop Windows, Display Shelves, Meeting and Conference rooms, Reception area, Corridor and Other similar applications.
SPECIFICATIONS

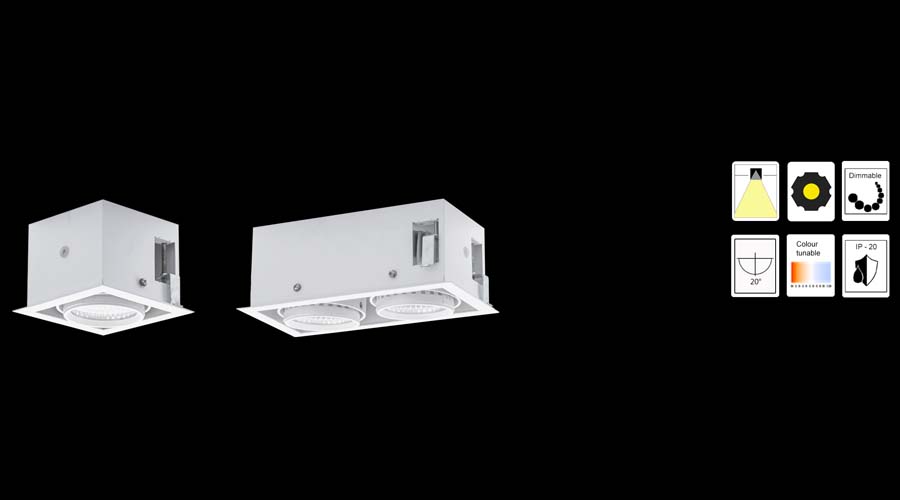

Architectural, COB LED twin-gimbal recessed downlights, mounted on cast aluminium frame and sheet metal box in 1X, 2X and 3X modular configuration for accent lighting application. Option to have different light beam angles with easily interchangeable anodized aluminium reflectors to suit specific application demand. Luminaire light beam direction adjustable through ±20° in vertical plane, independently in X and Y axes. Optical compartment is protected with clear poly carbonate film having very high transmissivity. Luminaire available in 15/20/24/30W ratings with >120 lm/W. High efficiency fixed output or anlog / DALI dimming driver fitted on a separate gear tray for remote installation. Luminaires available with fixed color tempearture or with tuneable White options and CRI of 80 or 90.
Options
Emergency conversion kit for 1-hour operation (EM).
Special Feature
Luminaire installation on and dismantling from false ceiling made easy without damaging the ceiling finish through adjustable screw accessible from bottom of luminaire.
